Soil sampling drilling machine

Rhino S1 Soil sampling drilling machine
Date:2018-10-24 10:02:07 | Visits:


American Rhino S1 soil sampling rig

Undisturbed sampling - no need to add water to drill, keep the soil as it is
● Ultra-high efficiency - high-speed drilling with a depth of up to 1 meter per minute

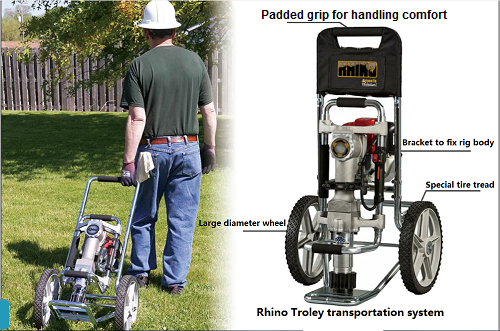

● Convenient to carry - Host-specific trolley, easy to reach at construction site

● The ideal depth of conventional soil sampling is 3-5 meters, for soft soil layer can reach 10 meters!

● Two-piece adapter design allows quick removal of driver from the post

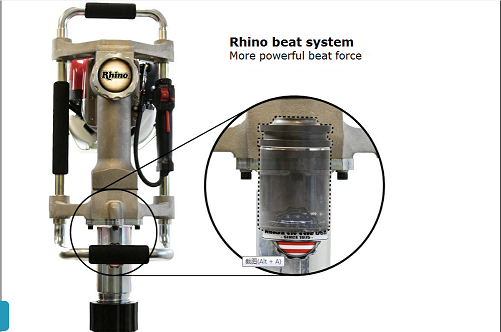

● Equipped with Rhino’s CIS™ Vibration Dampening

Padded grip for handling comfort

Powered by Honda™ GX35 4-Stroke Engine

Shock resistant heat-treated steel components

High-grade virgin aluminum cast body

Double sided, sealed bearings on all rotating parts

Removable bottom handle

Made in the U.S.A.

Rhino Lifetime Impact Warranty. See warranty statement for details


Application:

Soil structure survey                                                  Study on the effect of soil depth on plant roots

Study on soil water content and dissolved matter          Soil remediation urban environment survey

Study on soil water content and dissolved matter         Wetland survey            Agricultural soil survey



Specification:
Performance
1720 BPM (approximate)
Power 1.6 horsepower
Engine type
Honda™ GX35 4-Stroke Engine
Fuel consumption
0.6 L/H
Weight
21kg (host)
Handle
Rhino’s CIS™ Vibration Dampening
Sample collection rate
97%
Outer diameter
51mm
Inner diameter
41mm
Core diameter
36mm
